Have you got a Nissan Rogue sunroof leak problem? This guide is a step by step instructional to aid the Rogue owner with the removal and installation of a new sunroof.

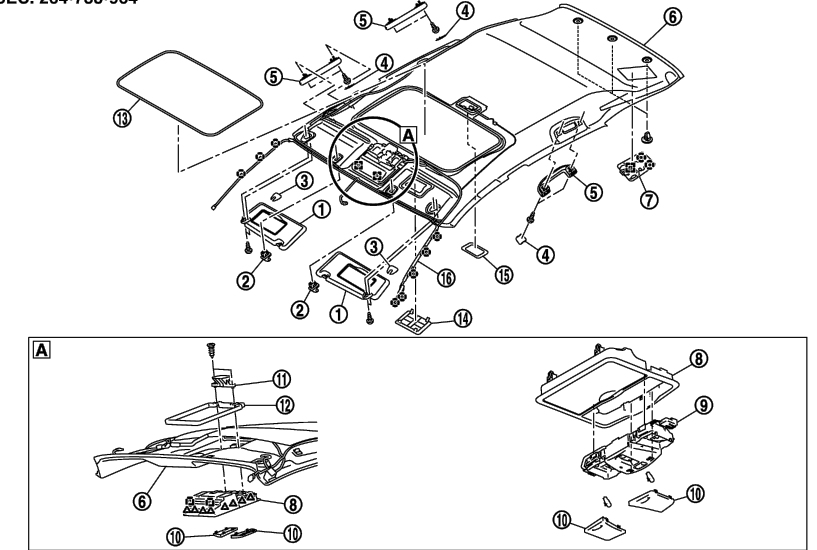

Exploded Sunroof View

Nissan Rogue Sunroof Exploded View

  1. Sun-visor
  2. Sun-visor holder
  3. Sun-visor cap
  4. Assist grip cap
  5. Assist grip
  6. Headlining assembly
  7. Rear center seat belt cover
  8. Roof console assembly
  9. Map lamp assembly
  10. Map lamp lens
  11. Map lamp bracket
  12. Roof plate assembly
  13. Sunroof welt
  14. Roof finisher
  15. Room lamp
  16. Roof harness

Removal



Sunroof image 1
1
Sunroof image 9
9
Sunroof image 8
8
Sunroof image 7
7
Sunroof image 6
6
Sunroof image 5
5
Sunroof image 4
4
Sunroof image 3
3
Sunroof image 2
2
  1. Remove rear seat cushion and seat back.
  2. Detach rear seat belt anchor bolt.
  3. Remove front seat belt anchor bolt.
  4. Detach luggage side lower finisher, luggage side upper finisher.
  5. Remove front pillar garnish, front kicking plate inner, center pillar lower garnish, center pillar upper garnish, front body side welt, rear body side welt, rear kicking plate inner.

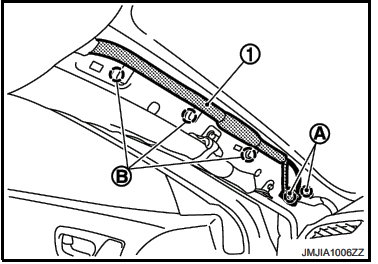

  6. Disconnect roof harness connectors (A).
  7. Remove harness clips (B) of roof harness (1).

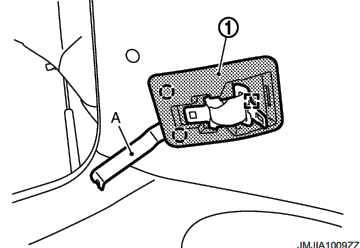

  8. Detach roof finisher (1) with remover tool (A).
  9. Disconnect roof harness connector (A).

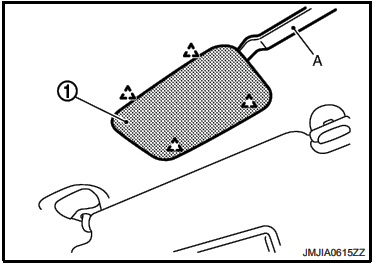

  10. Remove sun-visor, remove sun-visor cap, remove mounting screws and disconnect vanity mirror lamp harness connector.

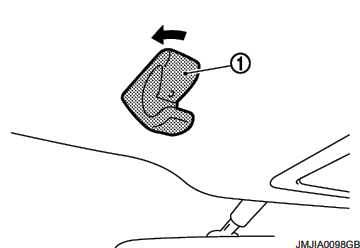

  11. Rotate 45 degrees and remove sun-visor holder (1).

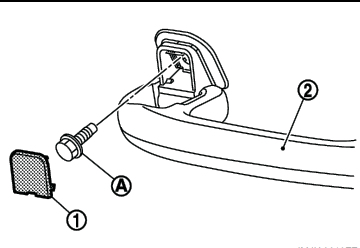

  12. Remove front assist grip and rear assist grip (2), remove assist grip cap (1), remove assist grip mounting bolts (A), remove assist grip (1) with remover tool (A) and then pull back assist grip.
  13. Recline front seat back to facilitate the headlining removal.

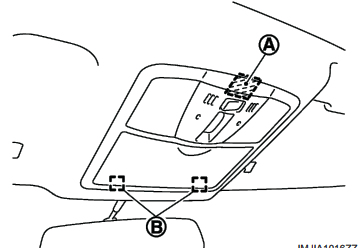

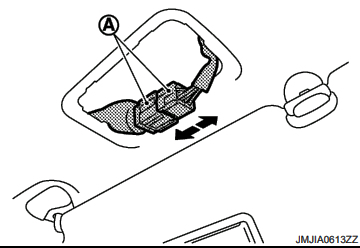

  14. Pull roof console assembly toward vehicle lower, and disengage dual-lock fastener (A) and metal clips (B).

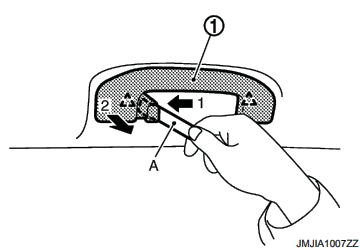

  15. Disengage rear center seat belt cover clips and metal clip using remover tool (A), then remove rear center seat belt cover (1).
  16. Using remover tool, remove headlining clips at the back side of headlining.

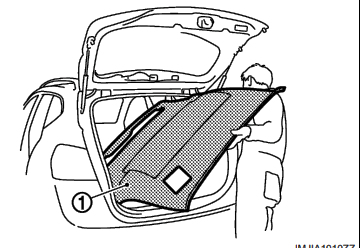

  17. Remove headlining (1) from back door.
  18. Detach the following parts after removing headlining. Room lamp assembly. Roof console assembly. Sunglasses holder assembly. Sunroof welt. Roof harness assembly.

Installation

Install in the reverse order of removal.

Note :

  • Install sun-visor holder then headlining hidden clips at the back side of headlining.
  • Be careful not to bend the headlining when installing.
