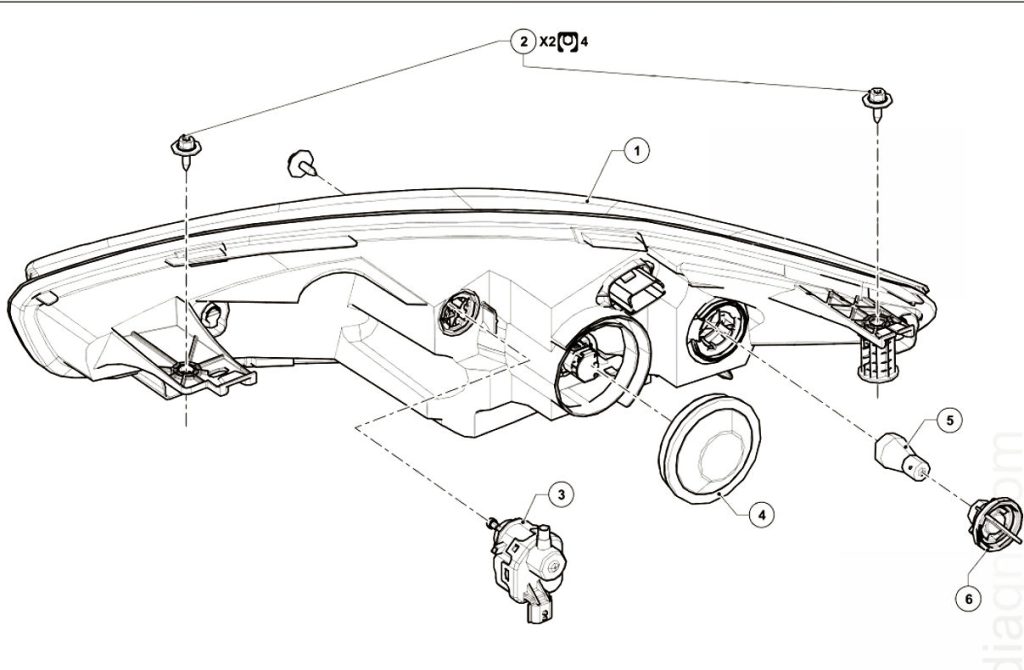

This simple tutorial on how to install and remove the Renault ZOE headlight assembly. For more tutorials please consider downloading the full Renault ZOE Workshop Manual, for more information click link (Renault ZOE Workshop Manual) or press the buy now button below.
REMOVAL PREPARATION OPERATION
- Disconnect the 12V supply circuit 12 V supply circuit : Lockout – Removal of lockout .
- Move
the front door seals,
the rear door seals,
the luggage compartment seal. - Unclip the B-pillar lower trims
cardiagn.com - Remove the front seat belts Front seat assembly.
- Unclip the B-pillar upper trims
- Remove Rear bench seat assembly.
the rear bench seat base,
the rear seat belts,
the rear bench seatback. - Remove
the luggage compartment carpet,
the rear end panel lining. - Remove
the rear inner sill upper trim,
the rear door sill lining,
the rear parcel shelf side trims,
the rear wheel arch interior trims,
the rear quarter panel trims,
the windscreen pillar trims. - Remove
the sun visors,
the grab handles.
the interior rear-view mirror,
the interior light. - Remove:
the windscreen wiper arms Wiping and washing: List and location of components
the scuttle panel grille Scuttle panel grille
the scoop under the scuttle panel grille Scoop under the scuttle panel grille - Remove
the windscreen Windscreen - Remove
the cover of the centre seat belt return mechanism bolt,
the centre seat belt return mechanism mounting.
REMOVAL OPERATION
- Remove
body internal trim, Roof trim assembly

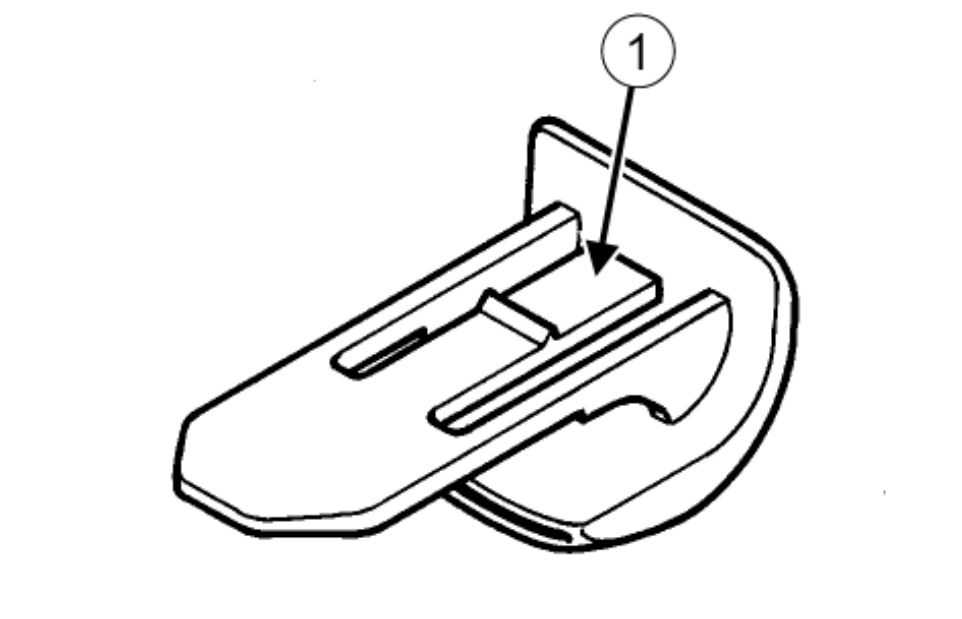

the rear clips by pressing on the clip using a small flat-blade screwdriver.
the headlining by removing from the front (this operation requires two people).
REFITTING OPERATION
- Proceed in the reverse order to removal.
