This simple step by step instructional will show you how to remove and install a Nissan Note E12 fan heater resistor. Illustrations and how to guide come from our Nissan Note E12 workshop manual that is available from the this link ( Nissan Note E12 Workshop Manual ), or by clicking the button below.
Removal

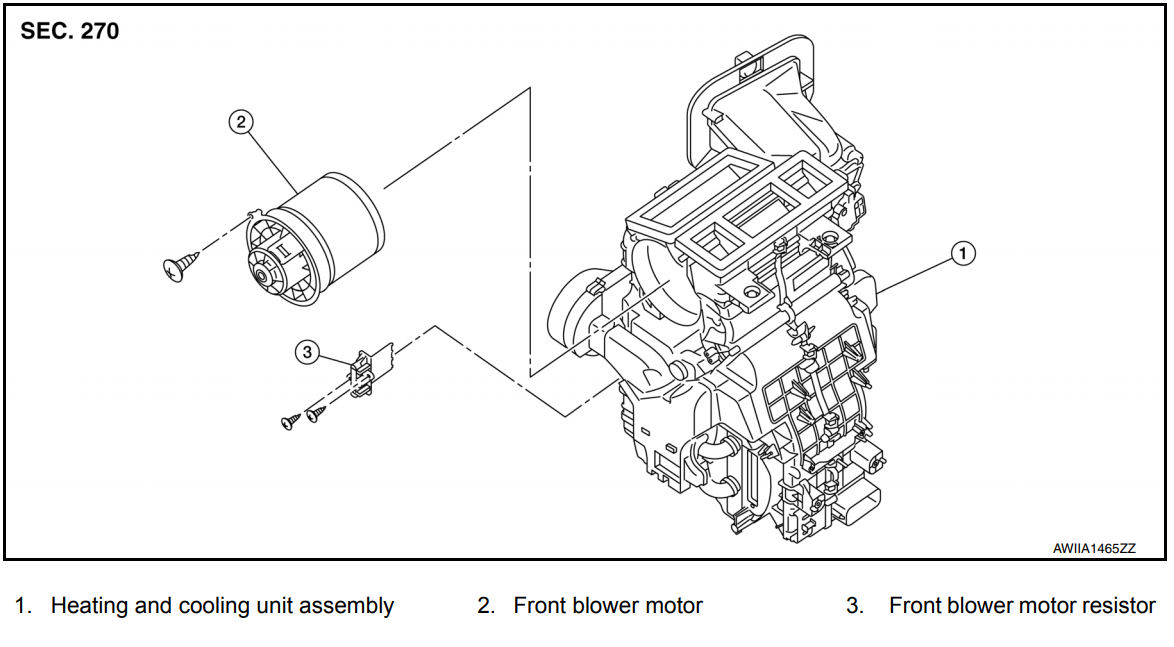

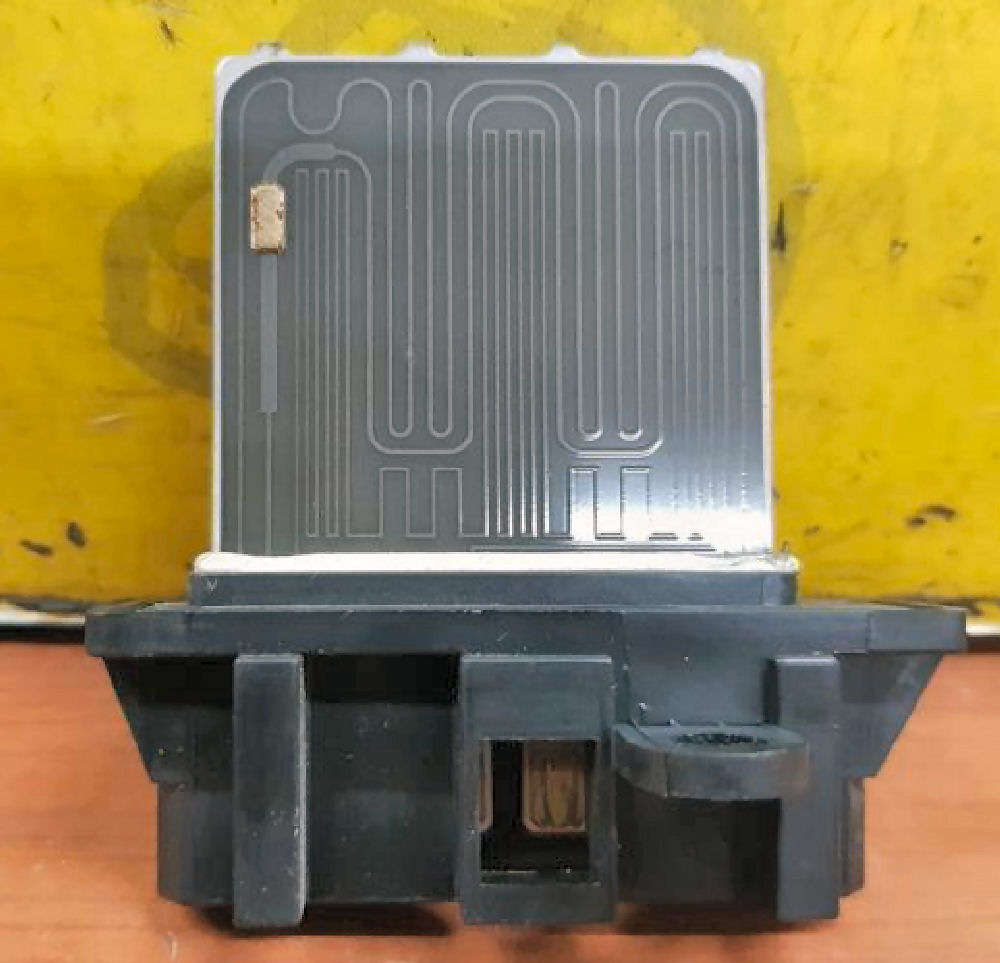

- Disconnect harness connector from front blower motor resistor.
- Remove screws and front blower motor resistor.
Installation
- Installation in reverse order of removal.

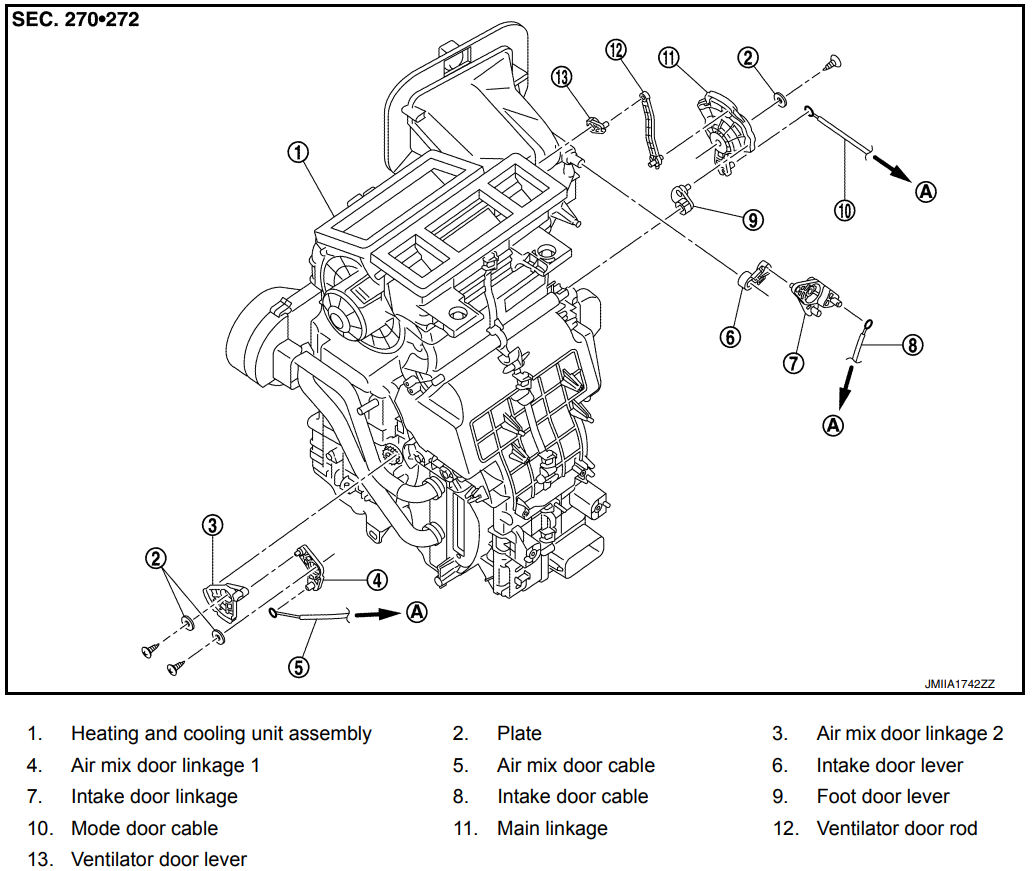

INTAKE DOOR CABLE : Adjustment
- Remove glove box assembly.

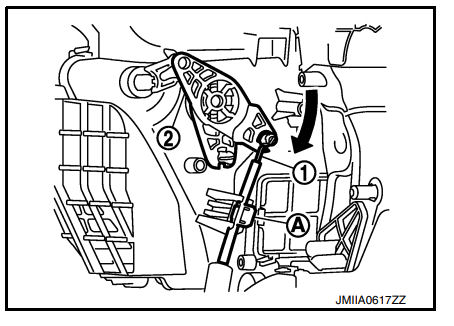

- Disconnect intake door cable (1) from clip (A)
- Set intake door lever to REC position.
- Push intake door link (2) in the direction shown, then carefully pull outer cable to front air control side and connect clip.
